SPECIFICATIONS

Wing Span: 31 Feet, 2 Inches
Length:21 Feet, 5 Inches
Height: 8 Feet, 6 Inches
Wing Area: 121.6 Square Feet
Aspect Ratio7.29:1
Empty Weight:795 Pounds
Max Gross Weight:1,320 Pounds
Fuel Capacity26.4 Gallons
Powerplant:Rotax® 912ULS (100HP)
Propellers: 2 Blade Composite


PERFORMANCE

Cruise Speed (@ 75% power)115 kts
Stall Speed (VS0)39 kts
VNE145 kts
Climb Rate805 fpm
Max. Range; 34 Gal. no reserve 4300 RPM830 miles
Takeoff Roll (@ Wg)800 feet
Glide Ratio (engine off)14:1

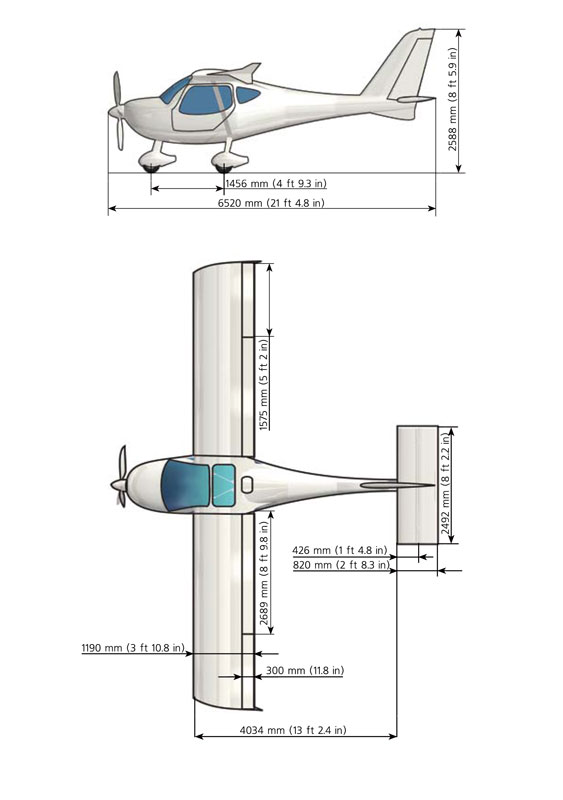

3-view drawing
MC_drawing

Rotax® 912ULS
rotax 912 ULS4 cylinder, 4 stroke liquid/air cooled engine with opposed cylinders, dry sump forced lubrication with separate oil tank, automatic adjustment by hydraulic valve tappet, 2 carburetors, mechanical fuel pump, electronic dual ignition, electric starter, propeller speed reduction unit, engine mount assembly, air intake system, exhaust system.

912 ULS / S kWHPRPMNmft. lb.RPMMax RPM
Normal69.09555001289451005800
Max 5 minute (takeoff)73.51005800
UnitsBoreStrokeDisplacementCompression Ratio
Metric84 mm61 mm1,352 cc10.5:1
American3.31 in2.40 in82.6 cid
